PipeForge

Badges

The live image URLs use caoyadong888-wq/pipeforge-demo. They are the only external images on this page. The recorded copies below are build-time fallbacks.

ci.yml

构建时记录：live，2026-10-07T08:29:50+08:00（Asia/Shanghai）

release.yml

构建时记录：live，2026-10-07T08:29:50+08:00（Asia/Shanghai）

Pipeline

lint and the four test cells run first. build needs both. sbom and scan run in parallel after build. summary runs after all of them. publish runs only from release.yml after that same ci workflow succeeds.

Diagram of lint, test 3.10 through 3.13, build, parallel sbom and scan, summary, and release publish

The same drawing is pipeline.svg.

Recent runs

Recorded runs: 28. Status live.

From results/runs.json. Live run ids from the public repository.
Workflow	Event	Branch	Commit	Conclusion	Duration
ci.yml	push	main	`2263a41`	success	164s
codeql.yml	push	main	`2263a41`	success	100s
make-ghcr-public.yml	workflow_dispatch	main	`0386901`	failure	8s
codeql.yml	push	main	`0386901`	success	70s
ci.yml	push	main	`0386901`	cancelled	26s
make-ghcr-public.yml	workflow_dispatch	main	`da796d5`	failure	23s
codeql.yml	push	main	`da796d5`	success	57s
ci.yml	push	main	`da796d5`	success	124s
release.yml	push	v0.1.0	`f653c0b`	success	228s
ci.yml	push	main	`f653c0b`	success	134s
codeql.yml	push	main	`f653c0b`	success	66s
release.yml	push	v0.1.0	`568d7b3`	failure	2s
codeql.yml	push	main	`568d7b3`	success	59s
ci.yml	push	main	`568d7b3`	success	151s
codeql.yml	pull_request	dependabot/pip/uvicorn-gte-0.30-and-lt-0.55	`84d667f`	success	58s
ci.yml	pull_request	dependabot/pip/uvicorn-gte-0.30-and-lt-0.55	`84d667f`	success	168s
ci.yml	pull_request	demo/intentional-scan-block	`33603f7`	failure (intentional)	220s
codeql.yml	pull_request	demo/intentional-scan-block	`33603f7`	success	88s
codeql.yml	pull_request	demo/intentional-scan-block	`b81a239`	cancelled	4s
ci.yml	pull_request	demo/intentional-scan-block	`b81a239`	cancelled	50s
ci.yml	pull_request	demo/add-express-service-level	`c505198`	success	191s
codeql.yml	pull_request	demo/add-express-service-level	`c505198`	success	65s
ci.yml	push	main	`b65fc71`	success	204s
codeql.yml	push	main	`b65fc71`	success	58s
codeql.yml	pull_request	dependabot/pip/uvicorn-gte-0.30-and-lt-0.55	`1f9a155`	success	140s
ci.yml	pull_request	dependabot/pip/uvicorn-gte-0.30-and-lt-0.55	`1f9a155`	failure	274s
ci.yml	pull_request	dependabot/pip/fastapi-gte-0.115-and-lt-0.143	`b63b99e`	failure	270s
codeql.yml	pull_request	dependabot/pip/fastapi-gte-0.115-and-lt-0.143	`b63b99e`	success	142s

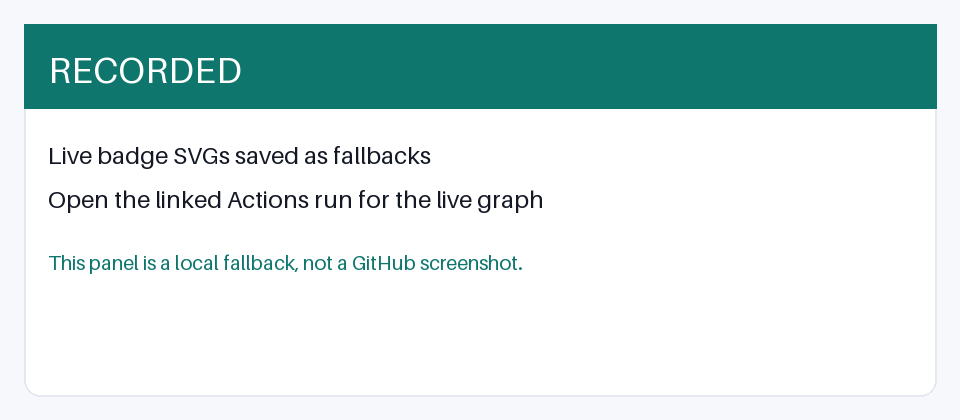

Run graph fallback (open a linked run above for the live Actions page):

Local fallback graphic for the Actions run graph

DEMO ONLY: intentional Trivy scan block — Deliberately blocked by Trivy: installs Django==3.2.0 with fixed CRITICAL/HIGH CVEs.

Stages

lint

Runs ruff, mypy, and a sha256-checked actionlint binary with shellcheck beside it.

Pinned tools and a shell-checked run script catch workflow mistakes before the test matrix spends minutes.

ci.yml line 40

test

Pytest on Python 3.10, 3.11, 3.12, and 3.13. Coverage must stay at or above 90 percent. fail-fast is off.

One Python version can hide a syntax or typing gap. The matrix is the whole supported range, and one red cell does not cancel the others.

ci.yml line 77

build

Builds the wheel and sdist, then builds the image with push false and load true, and saves image.tar.

CI proves the image builds. It does not publish it. Publish happens only on a version tag, from the archive the scanner already saw.

ci.yml line 143

sbom

Syft writes SPDX JSON and CycloneDX JSON for the image, and SPDX JSON for the source tree.

Two image formats cover consumers that accept only one of them. The source SBOM is a separate file.

ci.yml line 213

scan

Trivy scans the image archive at CRITICAL and HIGH, ignores unfixed issues, and fails the job when exit-code is 1. SARIF is uploaded for code scanning.

A scanner that always exits 0 does not gate a release. The failing exit code is the gate.

ci.yml line 280

summary

Writes each job result, the local image id, and the CycloneDX component count into the run summary.

Those values are passed in through environment variables. The run script does not interpolate event fields.

ci.yml line 302

publish

On a v*.*.* tag, pushes the scanned image to GHCR as the version and a short sha, attests the image, wheel, and sdist, and attaches those files plus SHA256SUMS to a GitHub Release.

There is no floating latest tag and no server rollout. The token is GITHUB_TOKEN.

release.yml line 68

permissions

The workflow token starts at contents: read. Only the scan job, CodeQL, and publish raise it, and only for the scope that job uses.

A pull request run does not receive a write token for packages or releases. Checkout sets persist-credentials to false.

ci.yml line 12

Workflow YAML

Highlighted from snapshot 2263a414fe628107f433d708f83dd82cc29e55a6. Blob links point at the public repository.

Release artifacts

Recorded releases: 1. State live. Recorded from the live GitHub Releases / Packages API for the public demo repository.

GHCR package: https://github.com/caoyadong888-wq/pipeforge-demo/pkgs/container/pipeforge-demo. Decision: visibility public, current state public.
GitHub Release: https://github.com/caoyadong888-wq/pipeforge-demo/releases
Attestations: linked from the GitHub Release / package after the tag publish job.
Repository root: caoyadong888-wq/pipeforge-demo

Locked decisions

Owner: caoyadong888-wq/pipeforge-demo (existing account; isolated via a separate public repo).
The public README does not link back to the portfolio host.
The GHCR package visibility decision is public. Current state: public.
Demo PRs: one normal PR and one deliberately scan-blocked PR. Decision id one-demo-pr-and-one-scan-blocked-pr.
Branch protection on main requires CI. Decision id main-requires-ci. State applied.

Offline checks

构建时记录. Recorded at 2026-10-07T08:30:30+08:00. Stage B. Owner status set. Image build not-run-locally. The box has no Docker, so this checkout does not claim an image was built here.

actionlint 1.7.12

Errors 0. Result pass. shellcheck 0.11.0 is on PATH for the run: scripts.

zizmor 1.30.1

High 0. Medium 0. Informational 1. Result pass.

informational superfluous-actions /workspace/pipeforge-demo/.github/workflows/release.yml

ruff ruff 0.16.10

Errors 0. Result pass.

mypy mypy 2.4.0 (compiled: yes)

Errors 0. Result pass.

pytest pytest 9.1.1

Passed 35. Failed 0. Coverage 98.7 percent. Result pass.

Workflow policy

Passed 15. Failed 0. Result pass.

passed test_checkout_drops_credentials
passed test_dependabot_covers_actions_pip_and_docker_weekly
passed test_jobs_have_timeouts
passed test_no_pull_request_target
passed test_only_github_token_secret_is_referenced
passed test_public_readme_does_not_link_to_the_portfolio_host
passed test_python_matrix_is_exactly_3_10_through_3_13
passed test_release_does_not_push_latest
passed test_run_scripts_do_not_interpolate_event_context
passed test_scan_fails_on_critical_and_high
passed test_snapshot_manifest_tracks_main
passed test_top_level_permissions_are_contents_read
passed test_uses_are_full_shas
passed test_workflows_have_no_deploy_channel
passed test_write_permissions_stay_on_the_whitelist
